The chrome://webrtc-internals internals

2020/01/15 SkyWay UG Tokyo #6

About me 1/2

• Yuji Sugiura
• NTT Communications
  • Front-End Developer
  • (work at SkyWay)

About me 2/2

• Twitter: @leader22
• GitHub: leader22
• Blog: console.lealog();

Today's theme

chrome://webrtc-internals

What's this?

• The specialpage which tracks WebRTC API usage
  • navigator.mediaDevices.getUserMedia(constraints)
  • （navigator.mediaDevices.getDisplayMedia(constraints)）
  • new RTCPeerConnection(configuration) and its details
• : Available in Chrome
  • : Firefox has about:webrtc
  • : Safari has only logger function for DevTools
• It is special, but just a Web page

If it's just a web page

• We can debug it w/ Chrome DevTools
• And done!

Overview (if needed)

Components

1. Header
2. Tab: for GetUserMedia Requests（always 1）
3. Tab: for PeerConnection（N pc）

1. Header

Dump downloader

• PeerConnection updates and stats（.txt, JSON format）
  • Exports how current session progress
  • Dump now, diagnose later
• Audio（.wav） recording
  • Input from microphone
  • Output from speakers
• Packets and event logs（.log）
  • incoming & outgoing RTP headers
  • RTCP
  • Format is Protocol Buffers...?

Version settings

• For getStats() format
  • Standard or legacy format
  • Use default（Standarized(promise-based)） is better

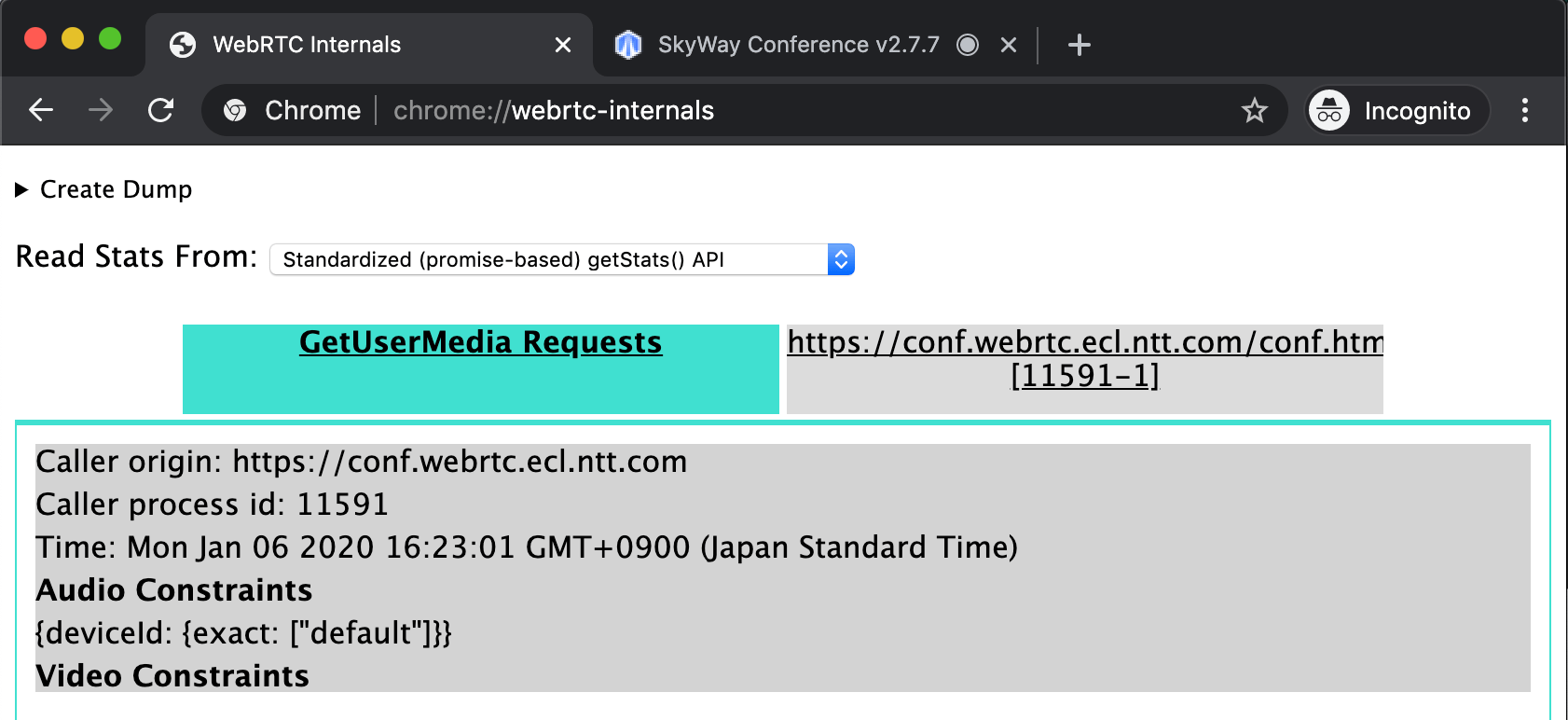

2. Tab: GetUserMedia Requests

Track getXxxMedia()

• navigator.mediaDevices.getUserMedia()
  • When
  • Where(URL)
  • How(constraints)
• navigator.mediaDevices.getDisplayMedia()
  • It also appears
  • But information is missing...

3. Tab: PeerConnection

RTCPeerConnection 1/3

• For each new RTCPeerConnection() instance
• How does it created(RTCConfiguration）
  • Use TURN or NOT
  • Use BUNDLE or NOT
  • etc..

RTCPeerConnection 2/3

• Time-based events list
  • Media added/removed/changed
  • State changed
  • Candidate found
  • SDP Offer/Answer
  • etc..

RTCPeerConnection 3/3

• Various data from getStats()
  • How many medias there
  • Which codec used
  • Which candidates are used
  • Bandwidth usage
  • etc..
• By tables and graphs

About inside

Single Page Application

• webrtc-internals.html
  • HTML + inline CSS
  • Empty <div /> for SPA
  • Just loads 2 JavaScript files below
• util.js
  • Utility functions
  • Only available under chrome:// urls
  • Do not care this time
• webrtc_internals.js
  • Today's main dish
  • 3000 lines

I wanna know...

• Where does data come from?
  • JavaScript should handle everything
  • Anybody send it
• Chrome has special APIs for that?
  • Secret REST API
  • Secret global function
• Maybe we can use it..?
  • my custom internals!
• Read all 3000 lines
  • https://gist.github.com/leader22/a7e8db88a5fb304be4e45b73424a1ff5

Did it!

chrome://webrtc-internals のしくみ - console.lealog();

Analysis result

Breakdown of 3000 lines

• 01%: Initialization
• 03%: Global variables, functions definition
• 04%: For Tab UI
• 05%: For Dump import/export
• 05%: PeerConnection events list
• 82%: PeerConnection Stats visualization（table + graph）

Data comes from

• Browser itself(C++)
  • No APIs we can touch
• Invoke chrome.send(evName) in JavaScript to signal
  • Available only under chrome:// pages
  • by manual, by timers
• Browser(C++) responds it
  • e.g. Then correct active RTCPeerConnection
  • e.g. Get RTCStatsReport
  • Then invoke corresponding global function w/ data

Process data

• Data is processed and stored in JavaScript
  • window.userMediaRequests
  • window.peerConnectionDataStore
  • Dumps = JSON.stringify() these
• Graphs are canvas elements
  • Not real-time, timer calls by 1 sec
• Almost all of 3000 lines are for Graphs
  • Various class definitions for various metrics
  • There are many lines not used anymore

Starting point: addStandardStats()

• When this is invoked, the graphs are rendered 1 frame
  • by timer, 1 sec interval
• Comment says like below...
  • a little?

https://github.com/chromium/chromium/blob/master/content/browser/resources/media/stats_rates_calculator.js#L95-L104

If you cope with it

• webrtc-internals can run on Firefox
• Or rather, if you have getStats()...
  • With Safari
  • With Native SDKs
  • or...!

Summary

The chrome://webrtc-internals is

• Usefull
• Just a web page, but special page
• Should help when making my own stats viewer

About getStats() itself

• Compatibility issues are still there...
  • I can talk several times with just that
• Let's talk later if you interested

Thank you!
